Label mid-size jobs and MAC projects with laminated labels & heat shrink tubes from 6mm to 18mm¹

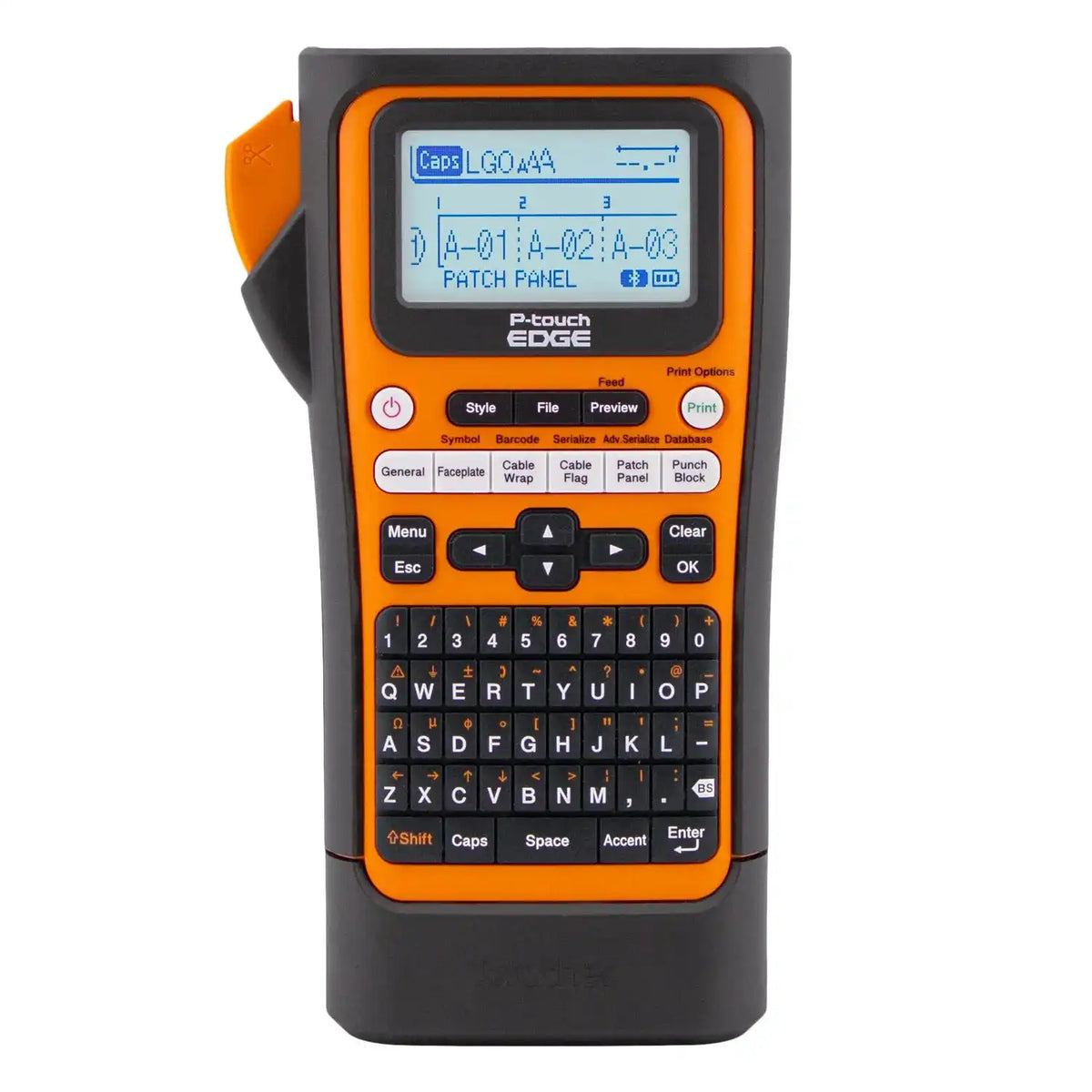

Create labels faster with quick application keys for cable wrap, cable flag, patch panel, punch block, and faceplate labels, plus add QR codes & linear barcodes
Cut-Pause cutting feature manages label printing and helps reduce waste
Store your databases and templates to print quickly from existing work
Design labels from your mobile device on the Pro Label Tool app and print labels wirelessly with convenient Bluetooth® connectivity
Charge the printer and connect to your PC with USB-C® to design and print from P-touch Editor label design software
Wrist strap helps provide added drop-protection

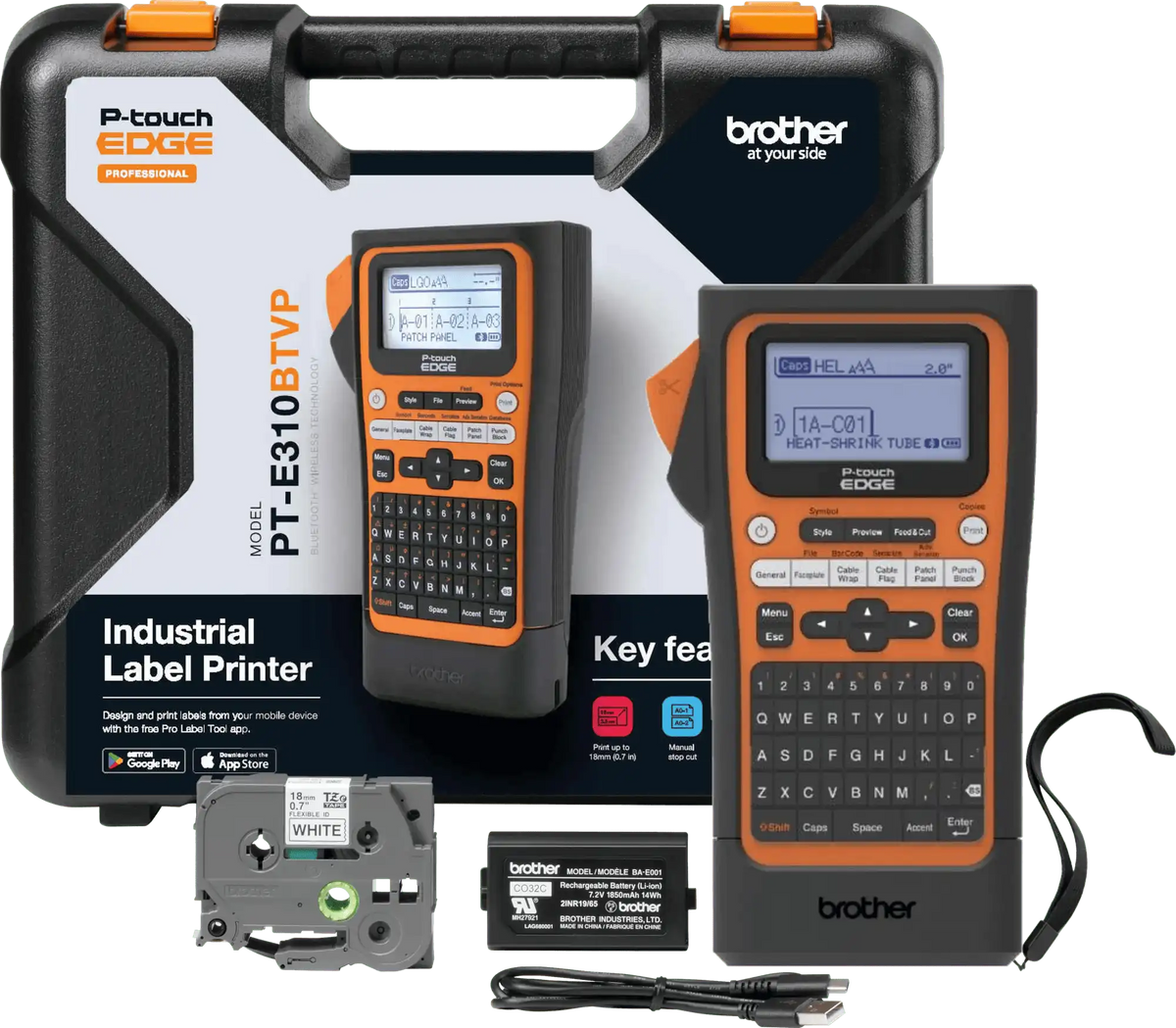

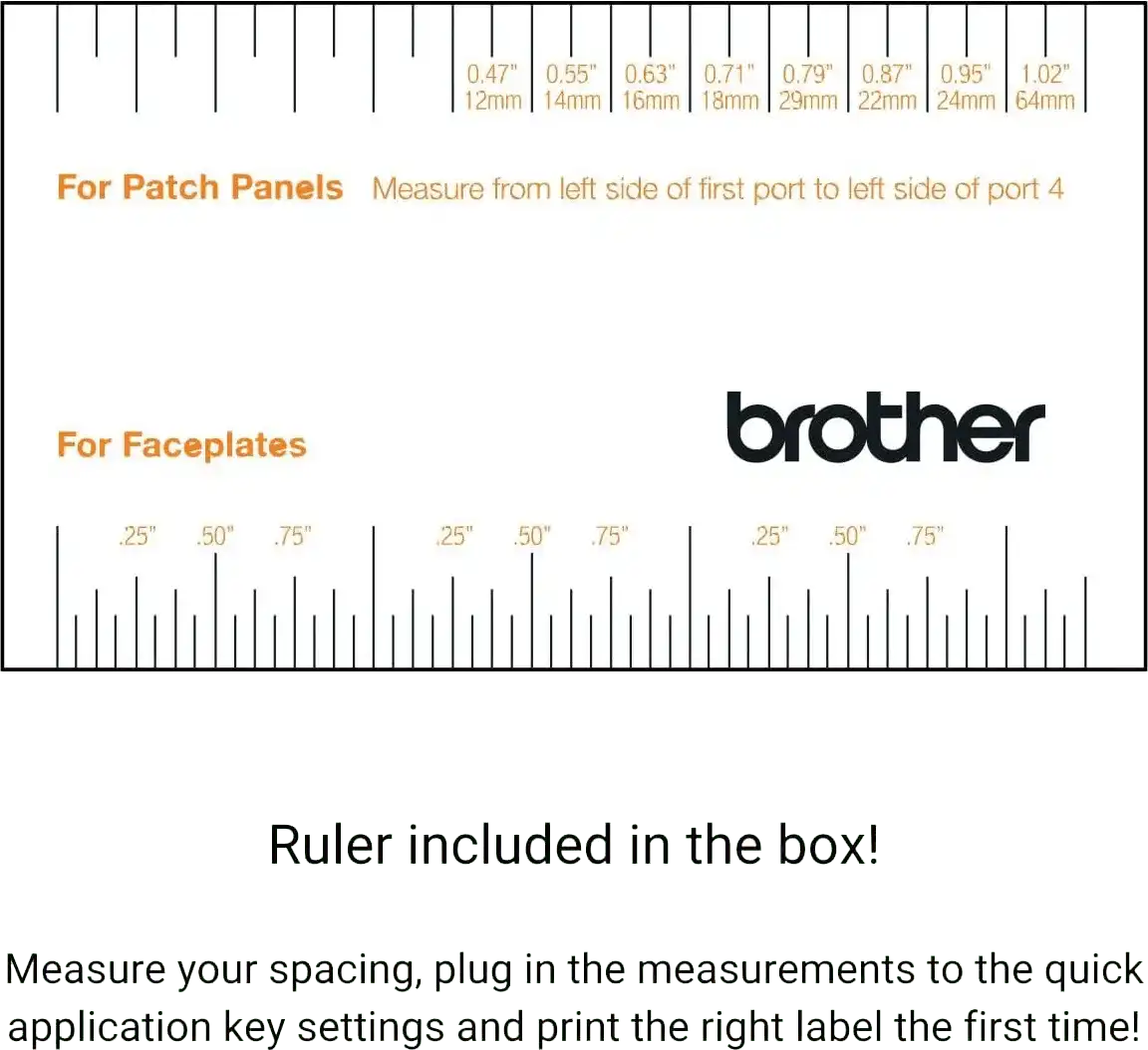

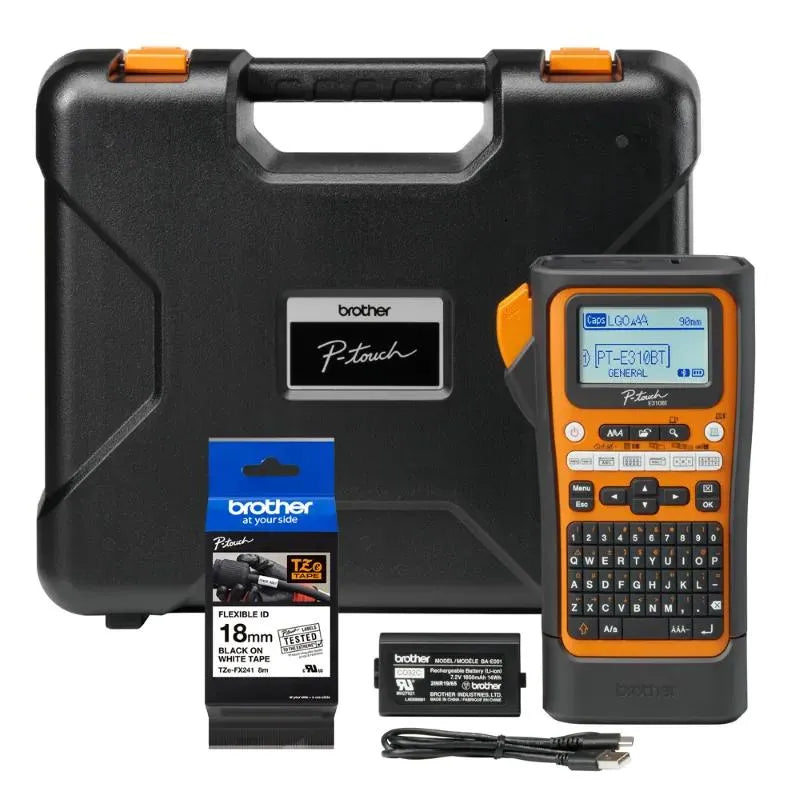

Kit includes hard carrying case, patch panel ruler, wrist strap, long-lasting rechargeable Li-ion battery, USB-C® cable
Comes with a 2-year limited exchange warranty & complimentary customer support
Industrial extra-strength adhesive and flexible ID laminated labels are UL certified to the UL-969 standard
Feature | Value |
|---|---|
| Carton Dimensions | 13" x 15" x 4" |
Feature | Value |
|---|---|
| Available Color | Orange |
| Channel Protected | No |
| Max Label Width | 18mm (~3/4") |
Feature | Value |
|---|---|
| Battery Yield | 20 Tapes |
| Battery Charge Time | 6 Hours (3 Hours for models compatible with PA-AD-004 Adapter) |
| Battery Requirements | Rechargeable Li-ion Battery (BA-E001) |
| Power Management | Auto Power On/Off |
| Battery Life | 300 Cycles |
| Power Source Options | AutoRanging Power Supply,Replaceable Rechargeable Battery |
Feature | Value |
|---|---|
| Printer Type | Handheld |
Feature | Value |
|---|---|
| Linear Barcodes | Code39, Code128, ITF (I-2/5), UPC-A, UPC-E, EAN-8, EAN-13, GS1-128 (UCC/EAN-128), CODABAR (NW-7) |
| Stored Templates | Up to 99 templates |
| Bitmap Fonts | Helsinki, Brussels, Los Angeles, San Diego, Florida, Calgary, Belgium, Atlanta, Adams, Brunei, Sofia, Germany, Letter Gothic |
| Outline Fonts | Print from Software |
| Energy Conservation Certifications | ENERGY STAR Unique ID: 2682259 |
Feature | Value |
|---|---|
| Media Width Max | 0.7" (18mm) |
| Consumable Format | Cartridge with Continuous Media |
| Tape Type‡ | Laminated,Non-Laminated,Standard Laminated,Flexible ID,Extra Strength Adhesive,Iron-On Fabric,Acid Free,Tamper Evident,Heat Shrink,Stencil |
Feature | Value |
|---|---|
| Print Speed | 0.8ips (20mm/sec) Até 20mm/seg0.8ips (20mm/sec)0.8 ips (20mm/sec) |
Feature | Value |
|---|---|
| Operating Environment | 50°F - 95°F (10°C - 35°C) |
| Storage Environment | -4°F - 140°F (-20°C - 60°C) |
Feature | Value |
|---|---|
| Media Compatibility | Flexible ID,Extra-Strength Adhesive,Standard Adhesive |
| Compatible Tape Families | HGe,TZe,HSe,STe |
| Compatible Tape Widths | 3.5mm,6mm,9mm,12mm,18mm |
Feature | Value |
|---|---|
| Warranty Type | 2-Year Limited Exchange |
